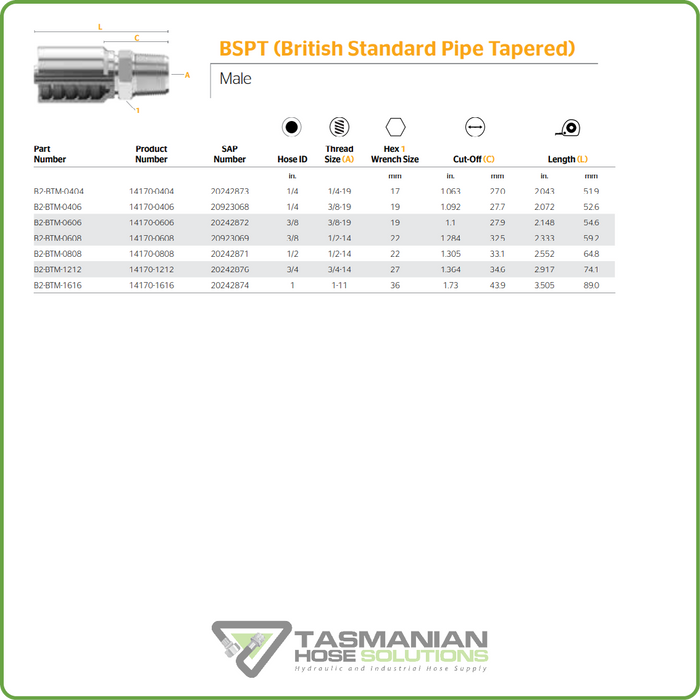

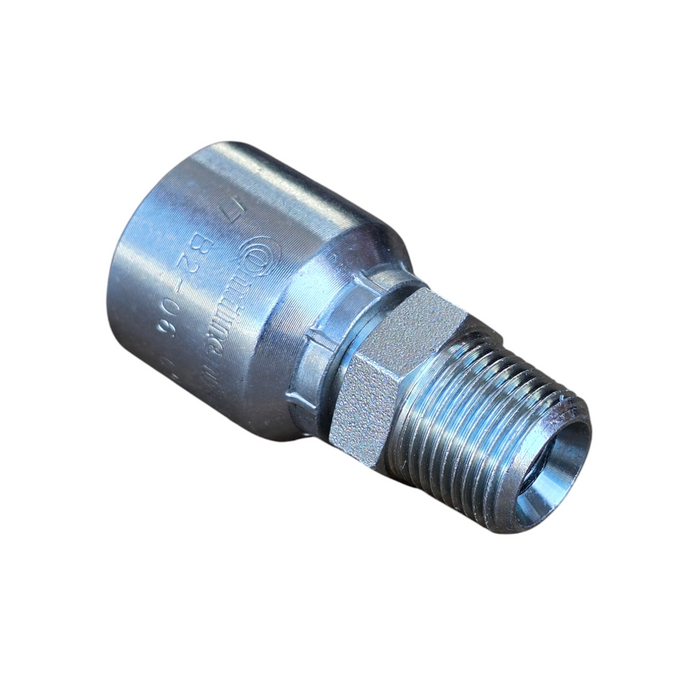

One Piece Crimp Coupling: BSPT Male. Size Range 1/4" to 1"
End 1 = Hose. End 2 = BSPT Male.
Continental fittings are constructed from a single piece of steel without brazed or welded joints to provide ultimate protection against leaks and potential leak paths. With full-length crimps and a low-profile design that will last longer, the interlocking Bite-to-Wire technology delivers maximum coupling retention for safer assembly and reliability under the toughest pressure — no internal or external skive required.
B2 Couplings suit the following Continental hoses:
SR1SN, DR1SN, SFS, SR2SN, DR2SN, LR2SN, LR16SC, LCP3, SR16SC, DR16SC, XR16SC, SCP3, ACP3, XCP3, XCP4, SR12, ARC12, ARC16SC and Hot Oiler C.
Freight:
Feel free to load up your cart with items from our extensive selection of hydraulic and industrial products – you'll only incur a single shipping charge regardless of the quantity! In the event that you order multiple items incurring additional freight charges - we refund you the difference prior to shipping your order.
BSPT
Identification: The British Standard Pipe Tapered is very similar to the NPTF fitting - a male fitting has a tapered thread. BSP threads are also known as Whitworth threads.
Seal: The BSPT male can be connected with a BSPT female or BSPP female. In either case, the seal is made within the threads through thread distortion. A thread sealant is recommended.
Comments: The BSPT fitting, although similar to the NPTF fitting, is not interchangeable. The thread pitch is different in most cases and the thread angle is 55º for the BSPT, as opposed to the 60º found on NPTF threads.
