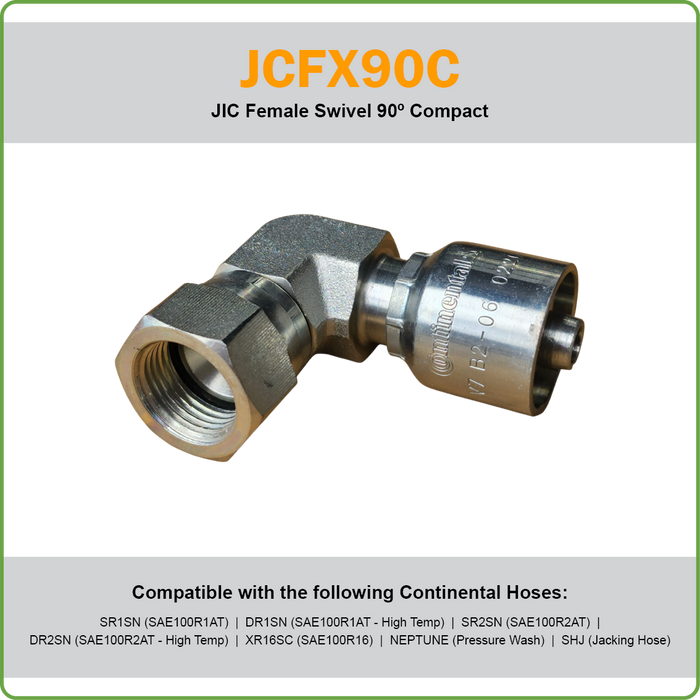

One Piece Crimp Coupling: JIC 37° Flare Female (Swivel) 90 Degree Compact. Size Range 7/16" to 3/4".
End 1 = Hose. End 2 = JIC Female (Swivel).
Continental fittings are constructed from a single piece of steel without brazed or welded joints to provide ultimate protection against leaks and potential leak paths. With full-length crimps and a low-profile design that will last longer, the interlocking Bite-to-Wire technology delivers maximum coupling retention for safer assembly and reliability under the toughest pressure — no internal or external skive required.
B2 Couplings suit the following Continental hoses:
SR1SN, DR1SN, SFS, SR2SN, DR2SN, LR2SN, LR16SC, LCP3, SR16SC, DR16SC, XR16SC, SCP3, ACP3, XCP3, XCP4, SR12, ARC12, ARC16SC and Hot Oiler C.
JIC
Identification: Straight threads. Both male and female have a 37º seat.
Seal: The seal is made on the 37º flare seat. The threads hold the connection mechanically. Only connect male SAE 37 with female SAE 37.
Application: SAE specifies use with high-pressure hydraulic tubing.
