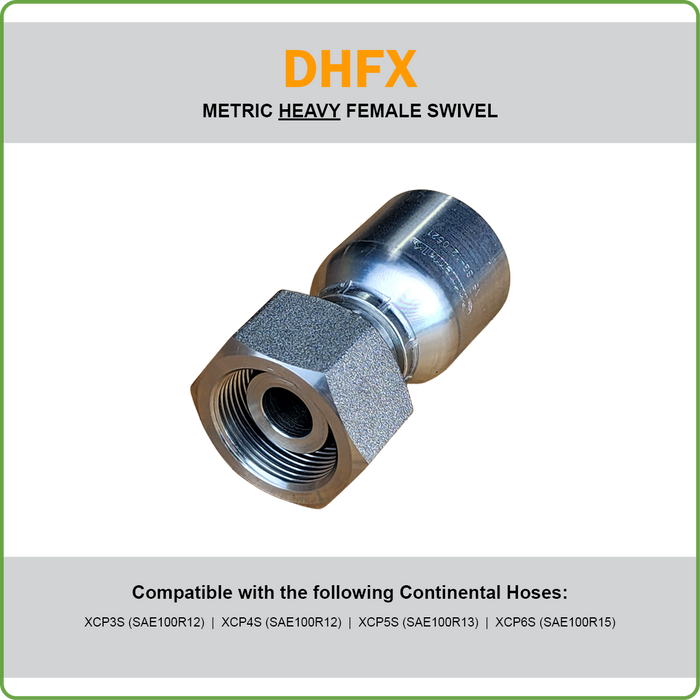

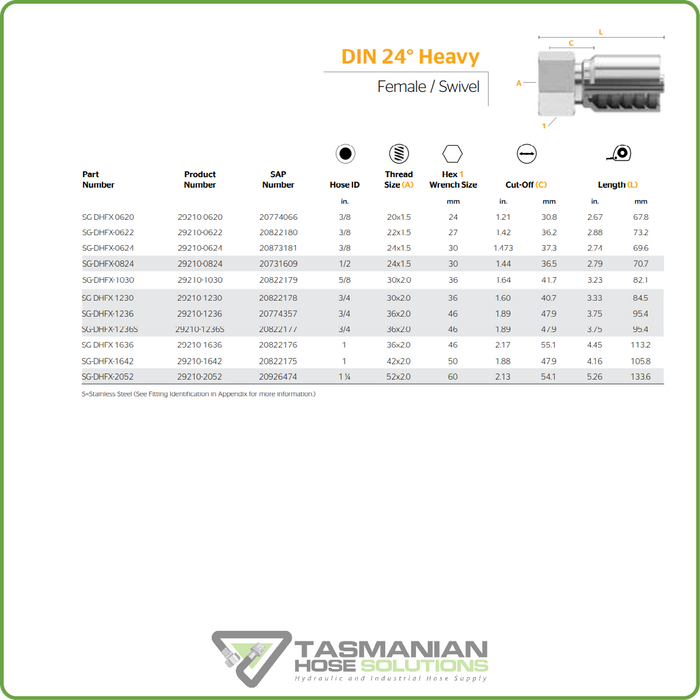

One Piece Crimp Coupling: DIN 24º Metric Heavy Female (Swivel). Size Range M24x1.5 to M52x2.0.
End 1 = Hose. End 2 = Metric Heavy Female (Swivel).
Continental fittings are constructed from a single piece of steel without brazed or welded joints to provide ultimate protection against leaks and potential leak paths. With full-length crimps and a low-profile design that will last longer, the interlocking Bite-to-Wire technology delivers maximum coupling retention for safer assembly and reliability under the toughest pressure — no internal or external skive required.
SG Couplings suit the following Continental hoses:
SR12 SAE 100R12 EN 856 R12 | SAE 100R15 EN 857 4SP | SR13 SAE 100R13 EN 856 R13 | XCP3S SAE 100R12 | SR15 SAE 100R15 | XCP4S SAE 100R12 | XCP5S SAE 100R13 | XCP6S SAE 100R15.
DIN 24º Metric
Identification: Both male and female have straight metric threads. The male has a 24º seat and a recessed counter bore that matches the tube OD used with it. The female can be any of three styles including a 24º cone with an O-ring, a metric tube fitting, or a universal 24º or 60º cone. Use a 12º gauge to measure seat angle as the dimension is taken from the fitting centerline.
Seal: Sealing takes place between the 24º seat in the male end and the respective sealing area in the female end. mechanically.
Comments: There is a light and heavy version of this coupling. Proper identification is made by measuring the thread size and tube OD. The heavy-duty version has a smaller tube OD than the light-duty version, but it has a thicker wall section.
