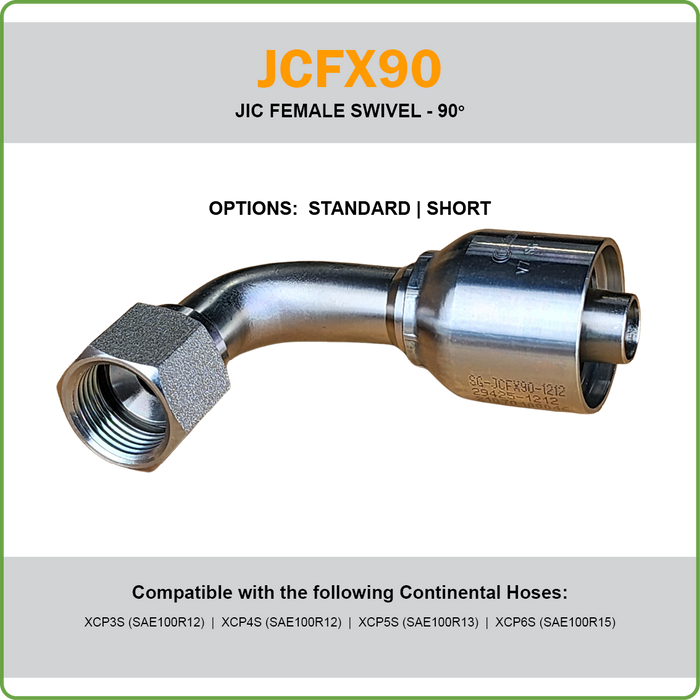

One Piece Crimp Coupling: JIC Female (Swivel) 90 Degree. Size Range 3/4" to 1-7/8"
End 1 = Hose. End 2 = JIC Female (Swivel).
Continental fittings are constructed from a single piece of steel without brazed or welded joints to provide ultimate protection against leaks and potential leak paths. With full-length crimps and a low-profile design that will last longer, the interlocking Bite-to-Wire technology delivers maximum coupling retention for safer assembly and reliability under the toughest pressure — no internal or external skive required.
SG Couplings suit the following Continental hoses:
SR12 SAE 100R12 EN 856 R12 | SAE 100R15 EN 857 4SP | SR13 SAE 100R13 EN 856 R13 | XCP3S SAE 100R12 | SR15 SAE 100R15 | XCP4S SAE 100R12 | XCP5S SAE 100R13 | XCP6S SAE 100R15.
JIC
Identification: Straight threads. Both male and female have a 37º seat.
Seal: The seal is made on the 37º flare seat. The threads hold the connection mechanically. Only connect male SAE 37 with female SAE 37.
Application: SAE specifies use with high-pressure hydraulic tubing.
