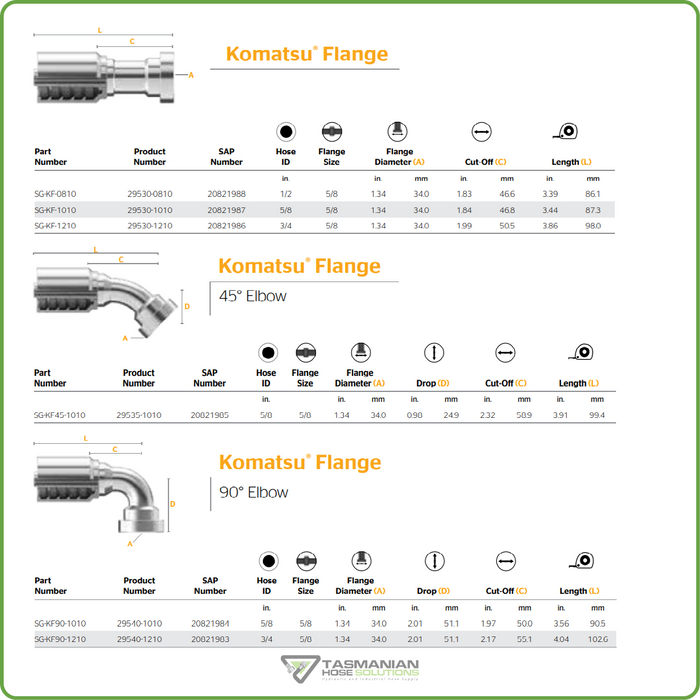

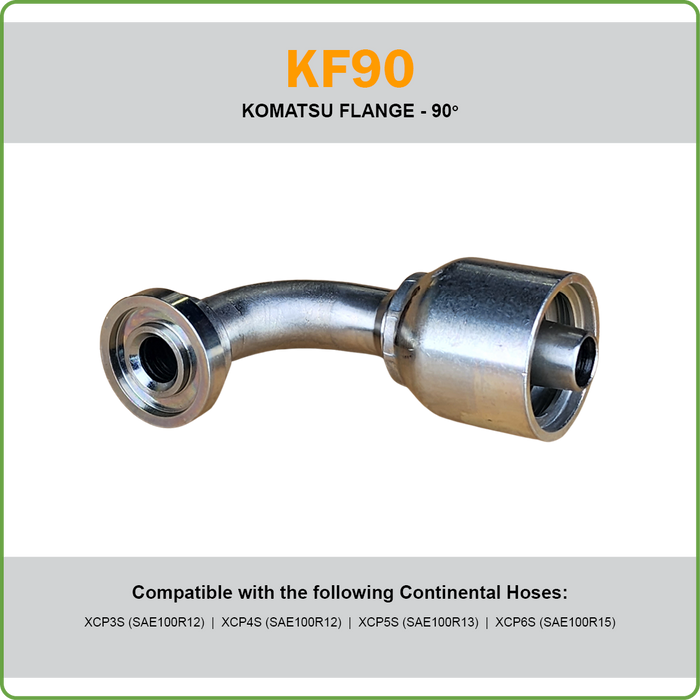

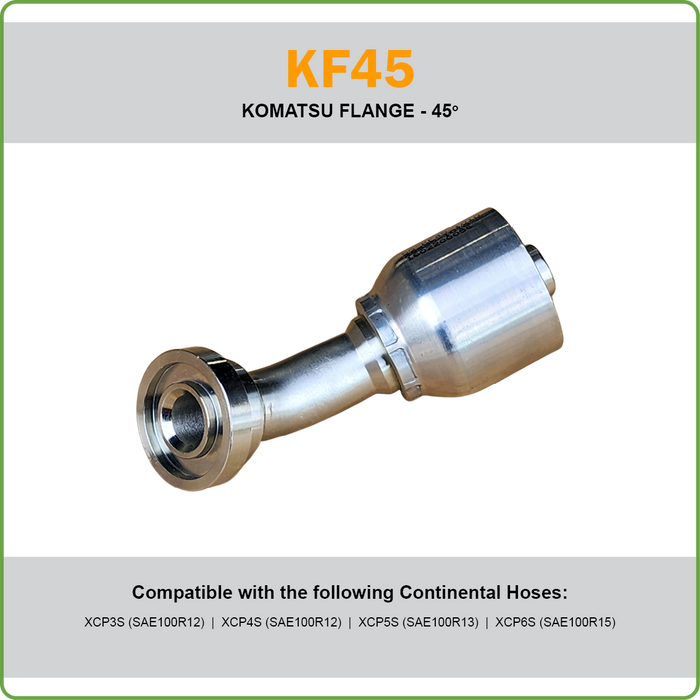

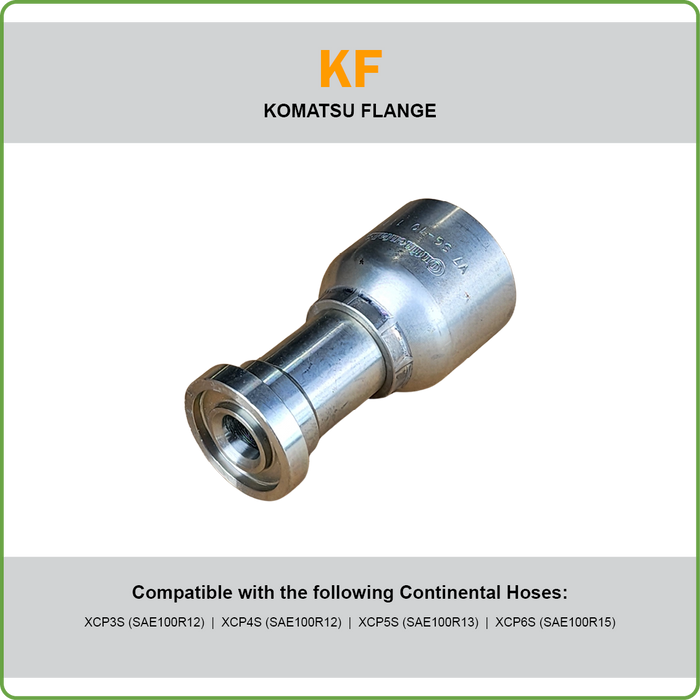

One Piece Crimp Coupling: Komatsu® Flange. Straight | 45 Degree | 90 Degree.
End 1 = Hose. End 2 = Komatsu® Flange.
Continental fittings are constructed from a single piece of steel without brazed or welded joints to provide ultimate protection against leaks and potential leak paths. With full-length crimps and a low-profile design that will last longer, the interlocking Bite-to-Wire technology delivers maximum coupling retention for safer assembly and reliability under the toughest pressure — no internal or external skive required.
SG Couplings suit the following Continental hoses:
SR12 SAE 100R12 EN 856 R12 | SAE 100R15 EN 857 4SP | SR13 SAE 100R13 EN 856 R13 | XCP3S SAE 100R12 | SR15 SAE 100R15 | XCP4S SAE 100R12 | XCP5S SAE 100R13 | XCP6S SAE 100R15.
Komatsu® Flange:
Identification: The Komatsu® Flange fitting is nearly identical to the SAE Code 61 flange fitting and fully interchangeable. As O-ring sizes are different, an SAE O-ring must be used when replacing the Komatsu® fitting with an SAE fitting.
