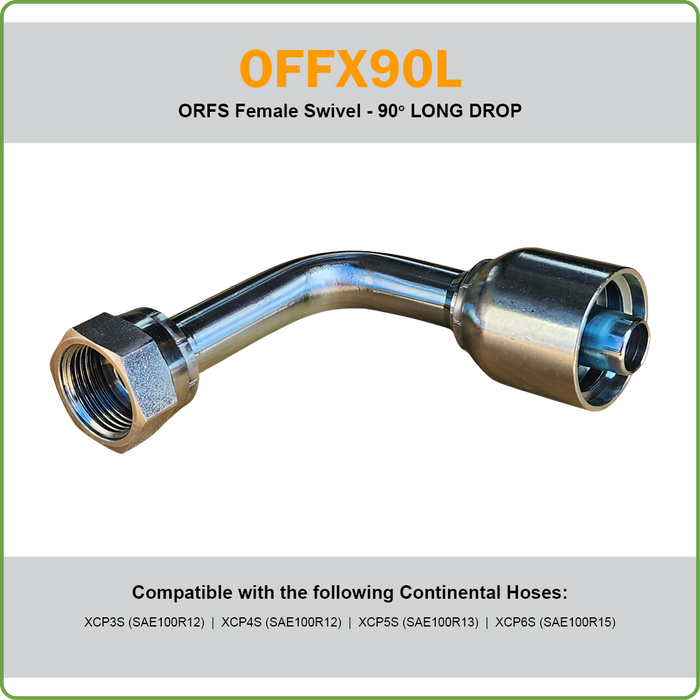

One Piece Crimp Coupling: O-Ring Face Seal Female (Swivel) 90 Degree Long Drop.
Size Range 13/16" to 2"
End 1 = Hose. End 2 = ORFS Female (Swivel).
Continental fittings are constructed from a single piece of steel without brazed or welded joints to provide ultimate protection against leaks and potential leak paths. With full-length crimps and a low-profile design that will last longer, the interlocking Bite-to-Wire technology delivers maximum coupling retention for safer assembly and reliability under the toughest pressure — no internal or external skive required.
SG Couplings suit the following Continental hoses:
SR12 SAE 100R12 EN 856 R12 | SAE 100R15 EN 857 4SP | SR13 SAE 100R13 EN 856 R13 | XCP3S SAE 100R12 | SR15 SAE 100R15 | XCP4S SAE 100R12 | XCP5S SAE 100R13 | XCP6S SAE 100R15.
ORFS
Identification: Male fitting has a straight thread and an O-ring. Female has a straight thread and a machined flat face.
Seal: The seal takes place by compressing the O-ring onto the flat face of the female. The threads hold the connection mechanically.
Application: Fittings are intended for hydraulic systems where elastomeric seals are preferred to overcome leakage and leak resistance. This connection offers the very best in leakage control.
